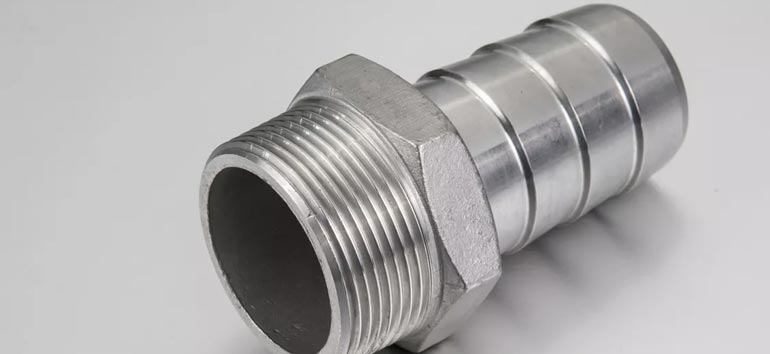

Hose Nipple
HOSE NIPPLE
we are manufacturer of above product , we supply all over india
with best price and quality. Our offered products feature high strength,
corrosion resistance, reliable performance and moisture resistance.
The length of the nipple is usually specified by the overall length with thread.
It may have a hexagonal section in the center for a wrench to grasp (sometimes
referred to as a nipple"), or it may simply be made from a short piece of
pipe (sometimes referred to as a "barrel nipple" or "pipe nipple"). A "close
nipple" has no unthreaded area; when screwed tightly between two female
fittings, very little of the nipple remains exposed.
Specification List of Hose Nipple
| Dimensions | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
|---|---|
| Size | 1/8″ NB TO 4″ NB |
| Form | Threaded Union, Forged Threaded Union |
| Pressure Ratings | Up to 20,000 psig (1,378 bar) |
| Temperature Ratings | Up to 1000° F (537° C) |
| Class | 33000 LBS, 6000 LBS, 4500 LBS |
| Type | Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT |
| Types | NPT, ISO/BSP, SAE threads |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Export to | Singapore, Indonesia, Dubai, Brazil, Ukraine, India, Thailand, Korea, Oman, Spain, Canada, USA, Ireland, Iran, Egypt, Saudi Arabia, Peru, etc |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Sizes available | 1/16 to 1 in. |
| Main Types | Pipe nipples, adapter and gaskets, reducing bushing and reducers, couplings, elbows, tees, crosses, union ball joints, caps, and plugs |
View SS Compression Hose Nipple Price List
| Hose Nipple Fittings Price in India | SS Union Price in INR | SS Compression Union Price in USD | Hose Nipple Price in UAE Dirham |
|---|---|---|---|
| STAINLESS STEEL FITTINGS - STRAIGHT SS TUBE FITTING UNION | Rs. 952 | 12.71 USD | UAE Dirham 46.67 |
Mechanical Characteristics of Npt Hose Nipple
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| 304/ 304L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 304H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
| 310 / 310S / 310H | 7.9 g/cm3 | 1402 °C (2555 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
| 306/ 316H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 317 | 7.9 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 321 | 8.0 g/cm3 | 1457 °C (2650 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 347 | 8.0 g/cm3 | 1454 °C (2650 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 904L | 7.95 g/cm3 | 1350 °C (2460 °F) | Psi 71000 , MPa 490 | Psi 32000 , MPa 220 | 35 % |
