DN	Nom. Pipe Size	Center to End Elbow, Tee, Cross A			Center to End 45° Elbow C			Outside Diameter Of Band H			Minimum Wall Thickness G			Length of Thread Min. (1)
DN	Nom. Pipe Size	2000	3000	6000	2000	3000	6000	2000	3000	6000	2000	3000	6000	B	L2
6	1/8”	21	21	25	17	17	19	22	22	25	3.18	3.18	6.35	6.4	6.7
8	1/4”	21	25	28	17	19	22	22	25	33	3.18	3.30	6.60	8.1	10.2
10	3/8”	25	28	33	19	22	25	25	33	38	3.18	3.51	6.98	9.1	10.4
15	1/2”	28	33	38	22	25	28	33	38	46	3.18	4.09	8.15	10.9	13.6
20	3/4”	33	38	44	25	28	33	38	46	56	3.18	4.32	8.53	12.7	13.9
25	1”	38	44	51	28	33	35	46	56	62	3.68	4.98	9.93	14.7	17.3
32	1-1/4”	44	51	60	33	35	43	56	62	75	3.89	5.28	10.59	17.0	18.0
40	1-1/2”	51	60	64	35	43	44	62	75	84	4.01	5.56	11.07	17.8	18.4
50	2”	60	64	83	43	44	52	75	84	102	4.27	7.14	12.09	19.0	19.2
65	2-1/2”	76	83	95	52	52	64	92	102	121	5.61	7.65	15.29	23.6	28.9
80	3”	86	95	106	64	64	79	109	121	146	5.99	8.84	16.64	25.9	30.5
100	4”	106	114	114	79	79	79	146	152	152	6.55	11.18	18.67	27.7	33.0

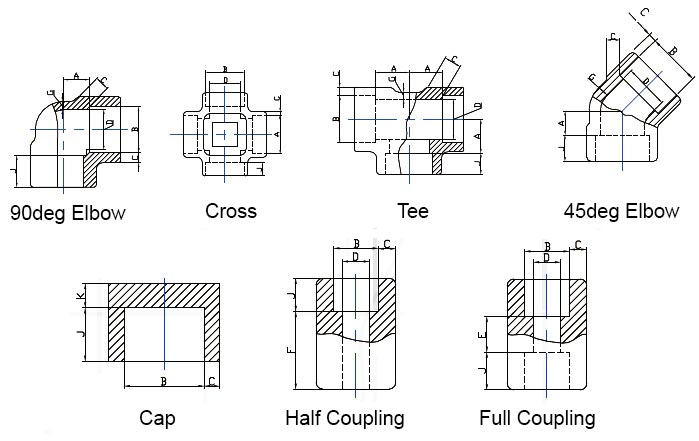

Socketweld Fittings
