Stainless Steel
Equal Tee

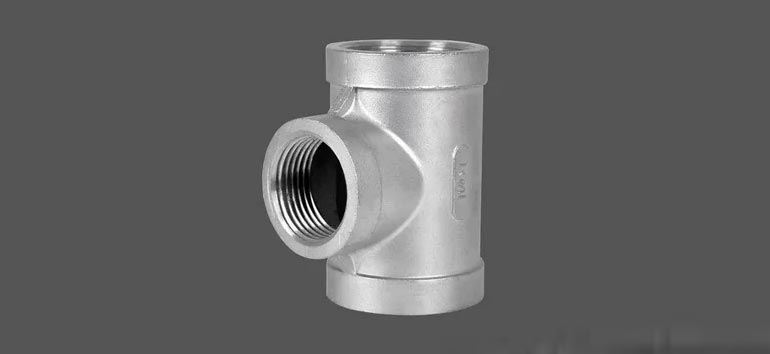

STAINLESS STEEL EQUAL TEE
To meet the ever-rising demands of the market, we are engaged in
offering a qualitative assortment of SS Tee. Offered tee is normally to joint
three pipes simultaneously at equal spaces. This tee is manufactured by talented
professionals and the latest technology by using premium tested stainless steel.
Furthermore, the provided tee is hardly checked by the quality controllers using
various parameters to deliver a defect free product at client' end.
Stainless Steel Equal Tee Specifications:
| Standards | ANSI – B 16.9, ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’, API 590-605, ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”, ASME B16.25 – ‘Buttwelding Ends’, ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’, MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’ |
|---|---|
| Schedule | Sch 5 TO Sch XXS. |
| Sizes | 1/2"NB TO 48"NB IN / 1/2” TO 36”, (SEAMLESS UPTO 24”), (WELDED 8” TO 36” ) |
| Materials | Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type | Butt Weld (BW) / Seamless / Welded / ERW / Fabricated |
| Thickness | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimension | Outside diameter : 1/2" à 24", (21,34 – 609,5 mm), Thickness : SCH 5S, 10S, 40S (STD), 80S (XS), 160, XXS, (1,65 – 59.51 mm) |
| Variations | Welded & Seamless |
Stainless Steel Equal Tee Material & Grades
| Stainless Steel Equal Tee |
|---|
| ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
