Reducer

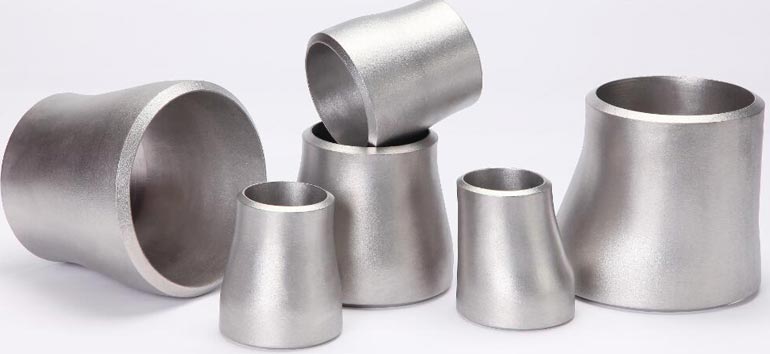

Our regular production and stock items include stainless steel reducers, carbon steel reducers, alloy steel reducers and duplex steel reducers. A steel pipe reducer is one of the most commonly used industrial pipe fitting, which helps to connect two pipes or tubes of different diameters. These are mainly used to adapt different pipe size in a pipeline system. Pipe reducers can mainly be categorized in two types – concentric reducer and eccentric reducer.
Hi -Ji Metal is a leading manufacturer, exporter and supplier of high quality and high performance steel eccentric reducers and steel concentric reducers in a variety of shapes and dimensions. Our products are manufactured as per ASTM, ASME, DIN, other international standards and as per custom requirement of our customers.

Buttweld Pipe Reducer Production Range – Concentric & Excentric


Outside Diameter: Seamless Pipe Tee ( 1/2″～24″), ERW / Welded / Fabricated Pipe Tee (1/2″～48″)
Types: Concentric Reducers, Eccentric Reducers
Wall Thickness: 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Manufacturing Standards– Pipe Reducer


ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2

ASTM A403 – ASME SA403 Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9 Factory-Made Wrought Fittings Buttwelding
ASME B16.25 Buttwelding Ends
ASME B16.28 Wrought Steel Short Radius Elbows and Buttwelding Returns
MSS SP-43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Pipe Reducer Material Grades


Stainless Steel Reducer ASTM A403 WP Gr. 304L , 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Reducer ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Reducer ASTM A420 WPL3, A420 WPL6
Alloy Steel Reducer ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Reducer ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Reducer ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

Buttweld Fitting Reducer


Nominal Diameter Outside Diameter End to End
D1*D2
DN NPS (Inches) Series A (mm)

 "H"(mm)
20×15

3/4×1/2

26.9×21.3

38

20×10

3/4×3/8

26.9×17.3

38

25×20

1×3/4

33.7×26.9

51

25×15

1×1/2

33.7×21.3

51

32×25

1.1/4×1

42.4×33.7

51

32×20

1.1/4×3/4

42.4×26.9

51

32×15

1.1/4×1/2

42.4×21.3

51

40×32

1.1/2×1.1/4

48.3×42.4

64

40×25

1.1/2×1

48.3×33.7

64

40×20

1.1/2×3/4

48.3×26.9

64

40×15

1.1/2×1/2

48.3×21.3

64

50×40

2×1.1/2

60.3×48.3

76

50×32

2×1.1/4

60.3×42.4

76

50×25

2×1

60.3×33.7

76

50×20

2×3/4

60.3×26.9

76

65×50

2.1/2×2

73.0×60.3

89

65×40

2.1/2×1.1/2

73.0×48.3

89

65×32

2.1/2×1.1/4

73.0×42.4

89

65×25

2.1/2×1

73.0×33.7

89

80×65

3×2.1/2

88.9×73.0

89

80×50

3×2

88.9×60.3

89

80×40

3×1.1/2

88.9×48.3

89

80×32

3×1.1/4

88.9×42.4

89

90×80

3.1/2×3

101.6×88.9

102

90×65

3.1/2×2.1/2

101.6×73.0

102

90×50

3.1/2×2

101.6×60.3

102

90×40

3.1/2×1.1/2

101.6×48.3

102

90×32

3.1/2×1.1/4

101.6×42.4

102

100×90

4×3.1/2

114.3×101.6

102

100×80

4×3

114.3×88.9

102

100×65

4×2.1/2

114.3×73.0

102

100×50

4×2

114.3×60.3

102

100×40

4×1.1/2

114.3×48.3

102

125×100

5×4

141.3×114.3

127

125×90

5×3.1/2

141.3×101.6

127

125×80

5×3

141.3×88.9

127

125×65

5×2.1/2

141.3×73.0

127

125×50

5×2

141.3×60.3

127

150×125

6×5

168.3×141.3

140

150×100

6×5

168.3×114.3

140

150×90

6×3.1/2

168.3×101.6

140

150×80

6×3

168.3×88.9

140

150×65

6×2.1/2

168.3×73.0

140

200×150

8×6

219.1×168.3

152

200×125

8×5

219.1×141.3

152

200×100

8×4

219.1×114.3

152

200×90

8×3.1/2

219.1×101.6

152

250×200

10×8

273.0×219.1

178

250×150

10×6

273.0×168.3

178

250×125

10×5

273.0×141.3

178

250×100

10×4

273.0×114.3

178

300×250

12×10

323.9×273.1

203

300×200

12×8

323.9×219.1

203

300×150

12×6

323.9×168.3

203

300×125

12×5

323.9×141.3

203

350×300

14×12

355.6×323.9

330

350×250

14×10

355.6×273.0

330

350×200

14×8

355.6×219.1

330

350×150

14×6

355.6×168.3

330

400×350

16×14

406.4×355.6

356

400×300

16×12

406.4×323.9

356

400×250

16×10

406.4×273.0

356

400×200

16×8

406.4×219.1

356

450×400

18×16

457×406.4

381

450×350

18×14

457×355.6

381

450×300

18×12

457×323.9

381

450×250

18×10

457×273.0

381

500×450

20×18

508×457

508

500×400

20×16

508×406.4

508

500×350

20×14

508×355.6

508

500×300

20×12

508×323.9

508

550×500

22×20

559×508

508

550×450

22×18

559×457

508

550×400

22×16

559×406.4

508

550×350

22×14

559×355.6

508

600×550

24×22

610×559

508

600×500

24×20

610×508

508

600×450

24×18

610×457

508

600×400

24×22

610×406.4

508

650×600

26×24

660×610

610

650×550

26×22

660×559

610

650×500

26×20

660×508

610

650×450

26×18

660×457

610

700×650

28×26

711×660

610

700×600

28×24

711×610

610

700×550

28×22

711×559

610

700×500

28×20

711×508

610

750×700

30×28

762×711

610

750×650

30×26

762×660

610

750×600

30×24

762×610

610

750×550

30×22

762×559

610

800×750

32×30

813×762

610
